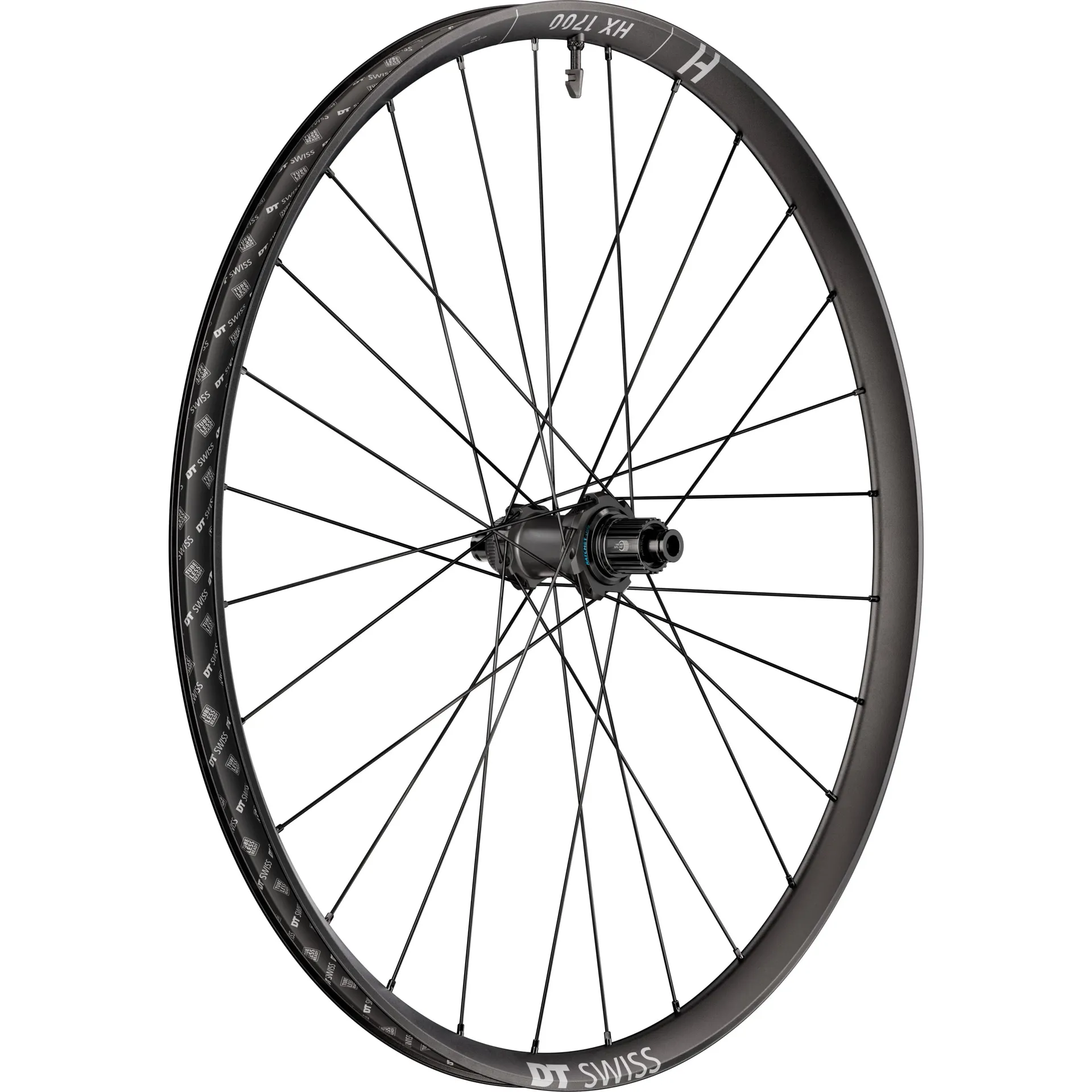

DT Swiss HX1700 30mm Rim Centre Lock 12x148mm BOOST 29er Rear Wheel - SRAM XD

Season:Core Range

Brand:Dt Swiss

Code:WHDTHX173008R

HX 1700 SPLINE E-MTB — wheels that let you push harder, ride longer

Get back on the trail with confidence. These wheels keep your power where it belongs — on the tyre and into the ground. They feel solid under sprint, hold through torque, and stay reliable ride after ride. If you want predictable traction and a wheelset built for heavy-duty E-MTB work, these are made to do that job.

Why they matter to your ride

You need wheels that handle sustained high torque without fuss. The HX 1700 SPLINE E-MTB does exactly that. Tool-free anti-pedal kickback tuning gives you instant control over how the bike behaves on technical climbs and punchy descents. The whole build is focused on durability and stability so you can ride harder, longer, and with less worry.

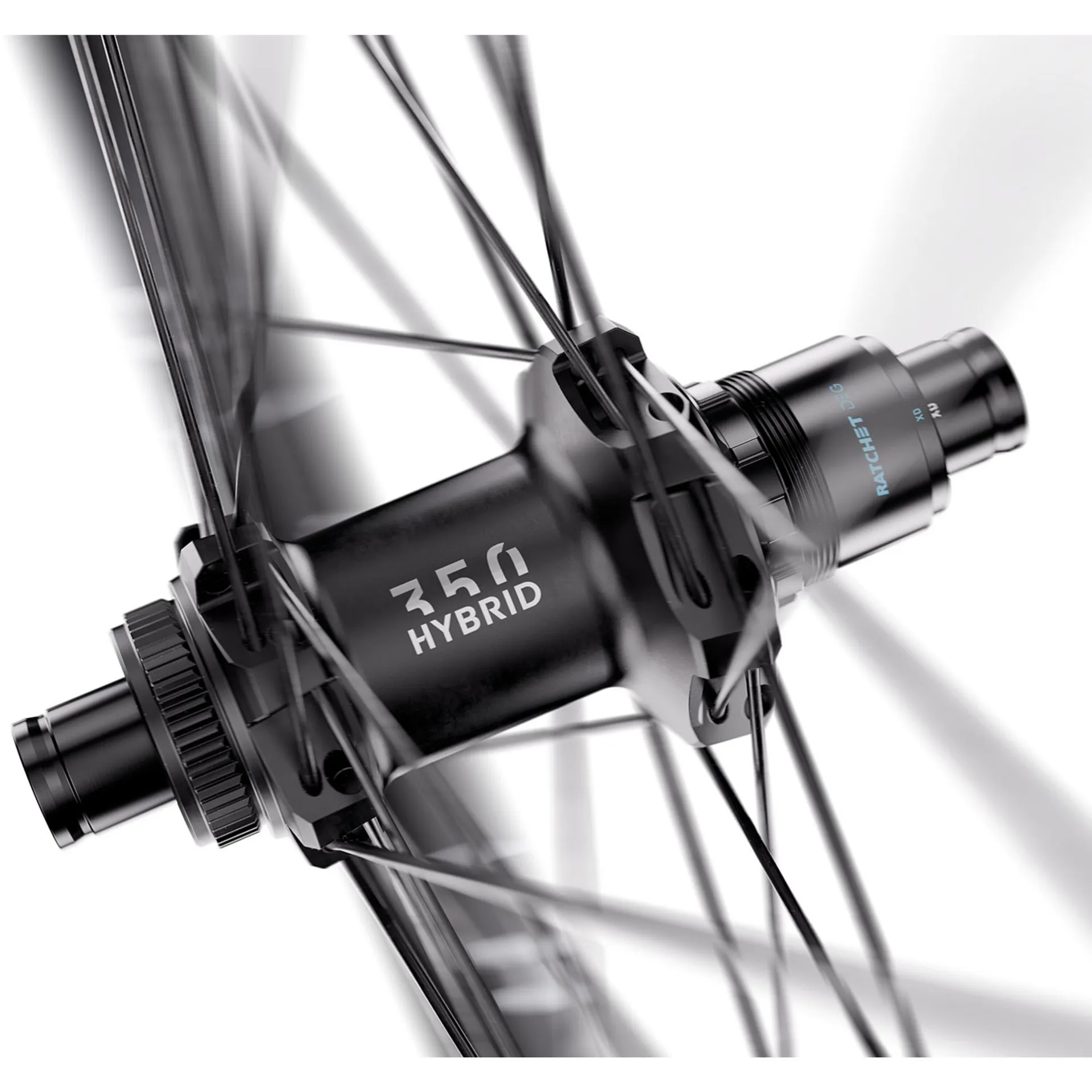

Hubs and engagement that respond

The E-MTB-specific 350 hybrid hubs use a 60-tooth Ratchet DEG DF system. Engagement is crisp. You also get tool-free anti-pedal kickback adjustment with 10° or 0° float. Turn it to suit the trail, your bike, or how you like your rear-end to feel when you stamp on the pedals.

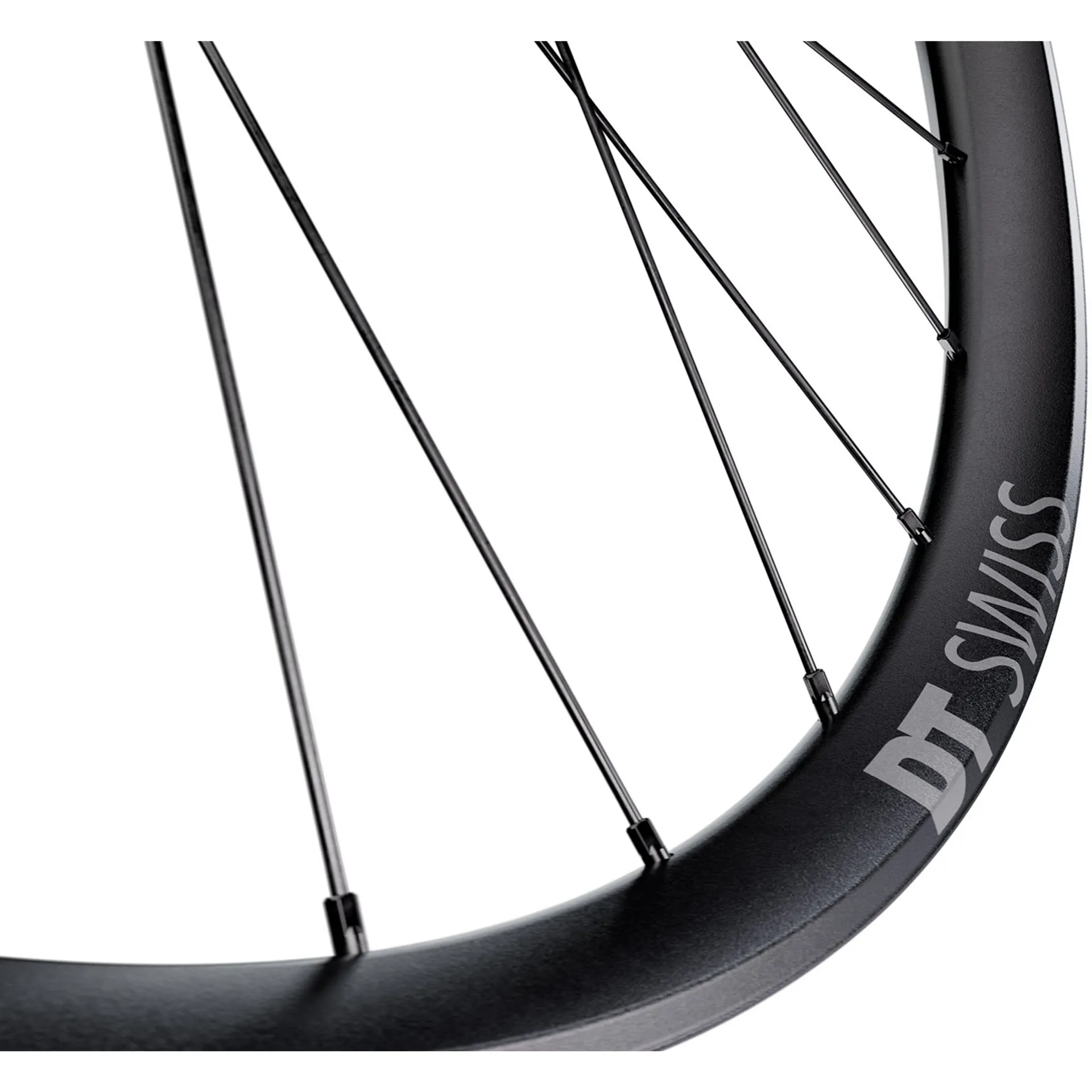

Rims and spokes built for torque

SPLINE straight-pull construction gives a great stiffness-to-weight balance. The new asymmetrical offset, usage-tuned alloy rims improve build stability and shave weight versus previous HX models while keeping a reinforced spoke bed to resist pull-through under high torques. Swiss-made straight-pull hybrid butted spokes use a larger 2.34 mm hub interface for much greater fatigue resistance during sustained stress.

Thoughtful, ride-ready details

These wheels come taped and ready for tubeless with DT’s premium rim tape and valves included. Centre-lock brake mounts are supplied with 6-bolt adaptors, so fitting to most setups is straightforward. They’re designed for EPAC-compliant E-bikes and built by hand in Europe to the standards you want underfoot.

Key Features:

  • Model: HX 1700 SPLINE E-MTB wheels with Ratchet DEG DF
  • E-MTB specific DT 350 hybrid hubs with 60-tooth Ratchet DEG DF system

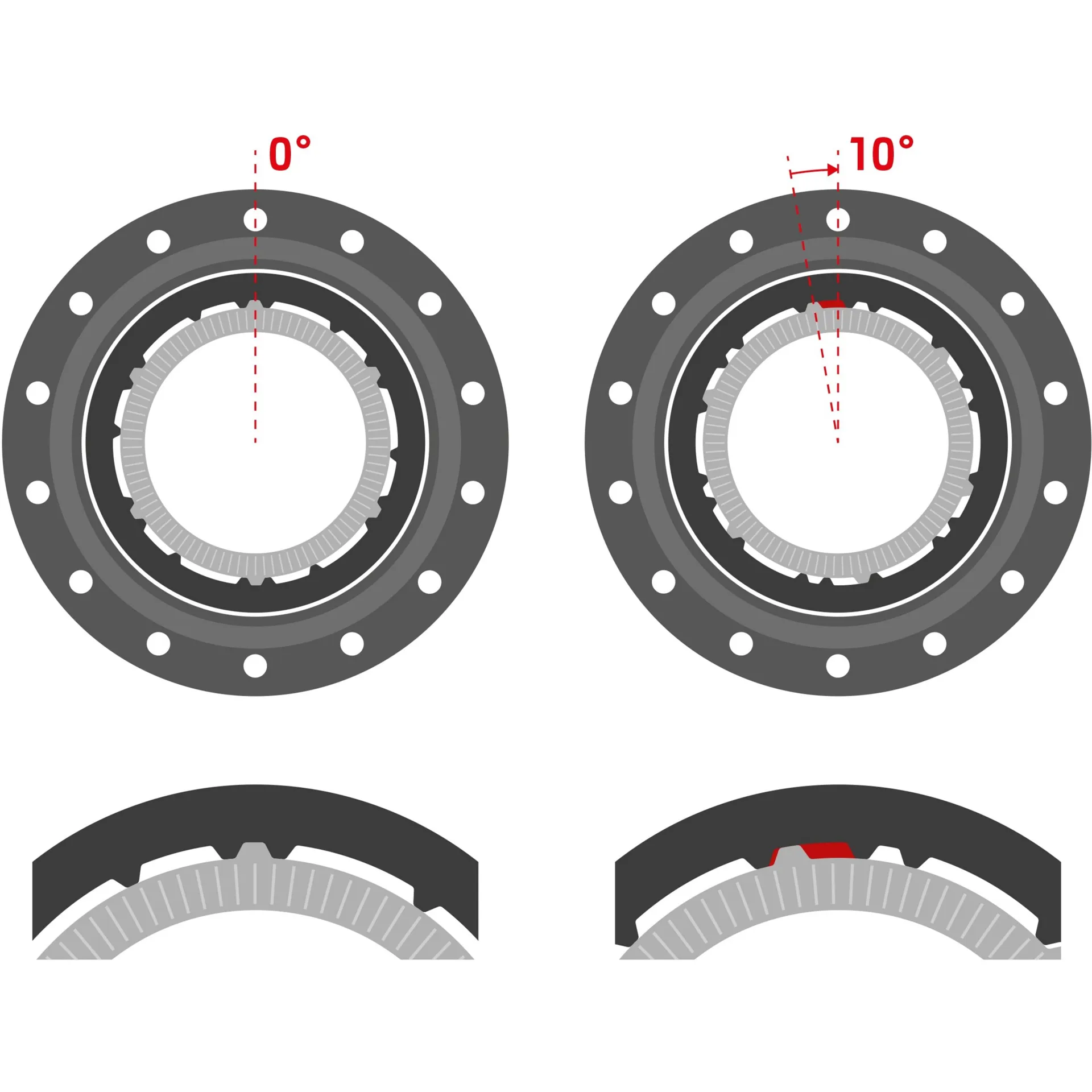

  • Tool-free anti-pedal kickback adjustment: 10° or 0° float
  • SPLINE straight-pull construction

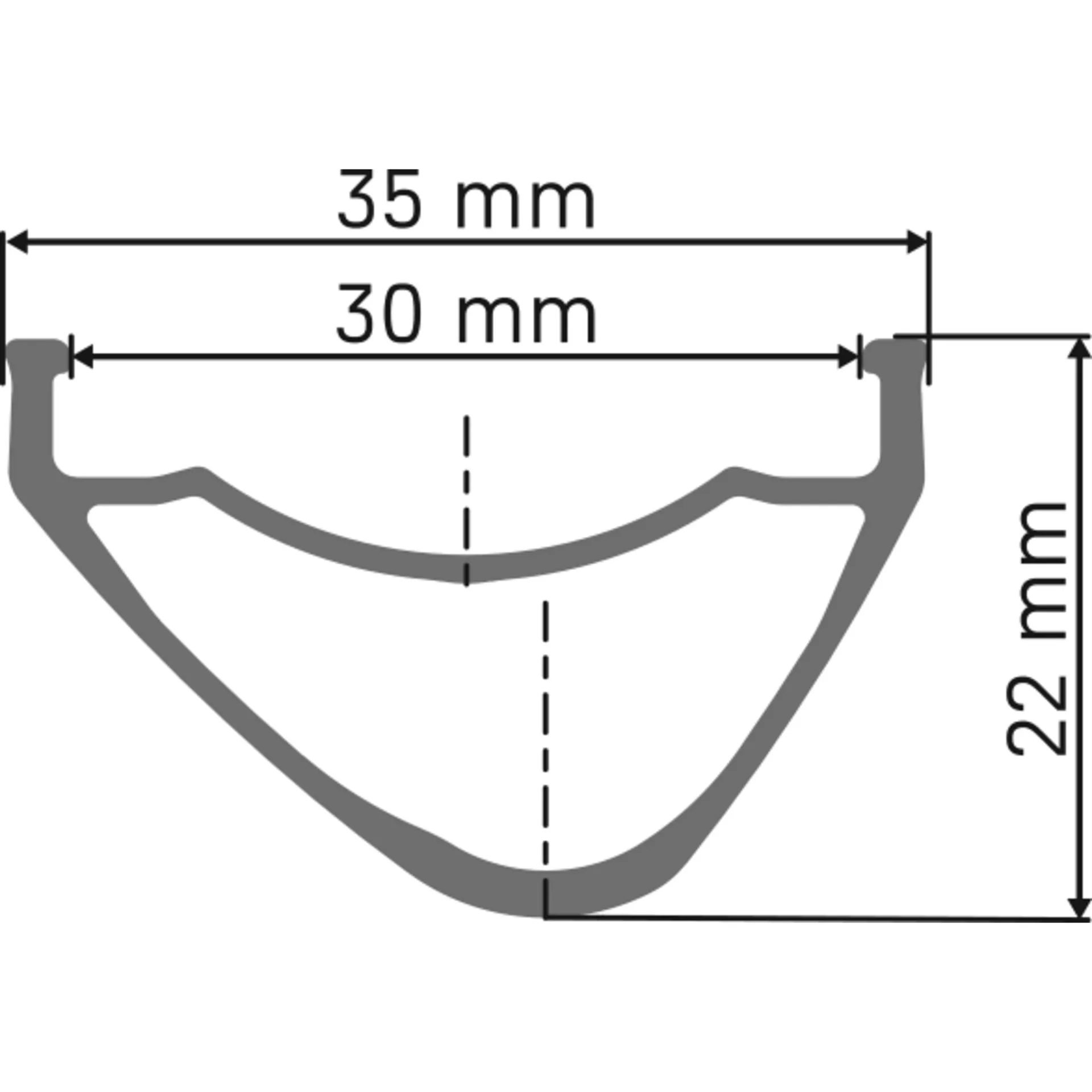

  • Asymmetrical offset, usage‑tuned alloy rims with reinforced spoke bed
  • Swiss-made straight-pull hybrid butted spokes with 2.34 mm hub interface
  • Hand-built in Europe
  • Centre-lock brake mounts; 6-bolt adaptors included
  • System weight limit: 150 KG
  • Designed for use with EPAC-compliant E-bikes
  • Taped ready for tubeless with DT premium rim tape and tubeless valves included
  • Available in 29" with a heavy-duty steel SRAM XD freehub
  • Discipline: E-Bike, MTB
  • Colour: Black
  • Size: 29 inches
  • Axle Type: Bolt Thru 12mm
  • Brake Type: Centre Lock
  • Freehub: SRAM XD
  • Hub Width: 148mm
  • Rim Depth: <25mm
  • Rim Type: Alloy Clincher
  • Rim Width: 26 - 35mm

Ready to ride? These wheels give you a solid platform to push harder and trust your line. Fit them, tune the kickback, and go see what the trail remembers.
