E-Thirteen Turbocharger R E spec 32T 104BCD TQ HPR50 55mm CL Bashguard

Season:Core Range

Brand:E*Thirteen

Code:CR5TRA-102

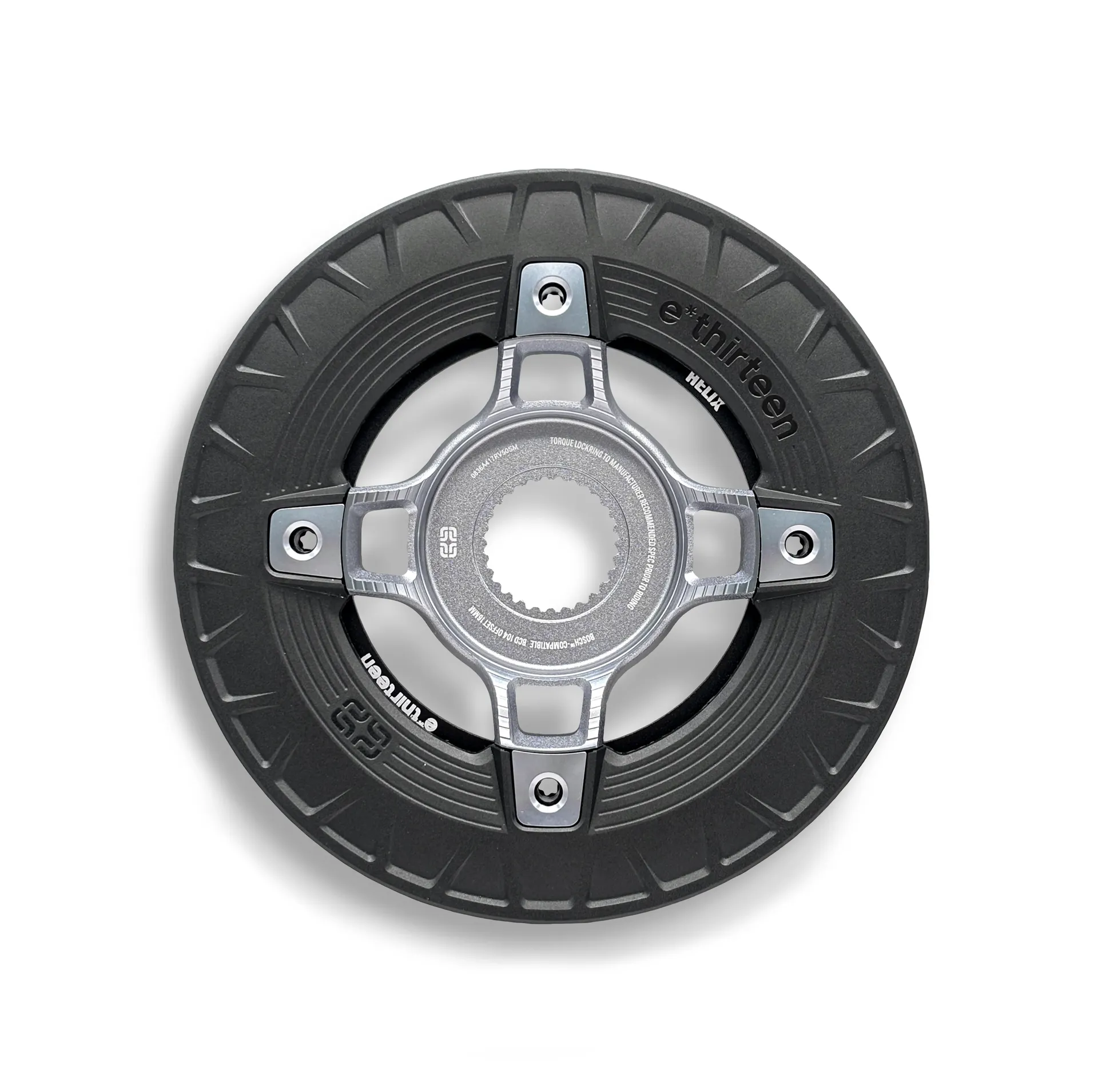

Turbocharger Race e*spec Spider, Bashguard & 104 BCD Aluminium Chainring

A compact, integrated solution that protects vulnerable motor and drivetrain components on TQ® HPR50-equipped e-bikes. The ethirteen espec Turbocharger pairs a rugged composite Bashguard with a 104 BCD Spider and AL-7075-T6 Helix 104 BCD Chainring for durable impact defence and excellent chain retention.

Overview

Designed for compact e-bike motor systems that leave the chainring and chain exposed, the Turbocharger Race e*spec assembly guards against impacts and damage while maintaining a clean, low-profile look. It’s purpose-built for TQ HPR50 motors and intended for heavier e-bike use where standard ISCG mounts are not available.

Design and Materials

  • Composite Bashguard for lightweight, tough protection
  • Forged‑CNC AL‑7075‑T6 104 BCD Aluminium Chainring (Helix profile)
  • 104 BCD Spider designed to integrate the Bashguard and chainring

Chain Retention and Compatibility

  • M4 narrow‑wide tooth profile for superior chain retention and long wear life
  • Compatible with Shimano®, TRP® and SRAM® 11/12‑speed drivetrains (including T‑type)
  • Accepts 104 BCD alloy or steel chainrings from any brand for simple, cost‑effective servicing

Fit and Installation

  • Purpose‑made for TQ HPR50 motor systems
  • Chainline: 55 mm; Offset: 12 mm
  • Turbocharger‑compatible Upper Sliders available separately for use with ethirteen espec chainguides
  • Includes mounting hardware and custom spacers to allow Spider + Chainring assembly without the Bashguard if desired

What’s Included

  • 104 BCD Spider
  • Composite Bashguard
  • AL‑7075 104 BCD Chainring (32T Helix profile)
  • Mounting hardware and custom spacers

Key Features

  • Purpose-built protection for TQ HPR50 e-bike motors
  • Composite Bashguard + 104 BCD Spider + AL‑7075 Chainring included
  • 32T Helix chainring with M4 narrow‑wide tooth profile
  • Compatible with Shimano/TRP/SRAM 11/12‑speed drivetrains (including T‑type)
  • Accepts third‑party 104 BCD alloy or steel chainrings for easy servicing
  • Chainline 55 mm, offset 12 mm; weight 203 g

Technical Specifications

  • Compatibility: TQ HPR50
  • Chainring: Aluminium (AL‑7075‑T6), 104 BCD, 32T
  • Material (chainring): Forged‑CNC AL‑7075‑T6
  • Teeth profile: M4 narrow‑wide
  • Chainline: 55 mm
  • Offset: 12 mm
  • Included: 104 BCD Spider, 104 BCD Aluminium Chainring, Composite Bashguard, mounting hardware, custom spacers
  • Weight: 203 g

For riders seeking robust drivetrain protection and reliable chain retention on TQ HPR50 e-bikes, the Turbocharger Race e*spec assembly offers a compact, serviceable solution.
